Installation of the Ability Mount (AMJ) should only be done by an Assistive Technology Professional (ATP). Technical support is available Monday - Friday, 7:00am - 3:00pm PST. Call 425-242-3902 or email support@tolttechnologies.com.
Ability Mount securely attaches an A13J to a powered wheelchair so that eye gaze can be used while the wheelchair is in motion. It easily moves out of the way for transfers, and moves back to the previously selected locking position. It supports multiple locking positions for different seating arrangements throughout the day.

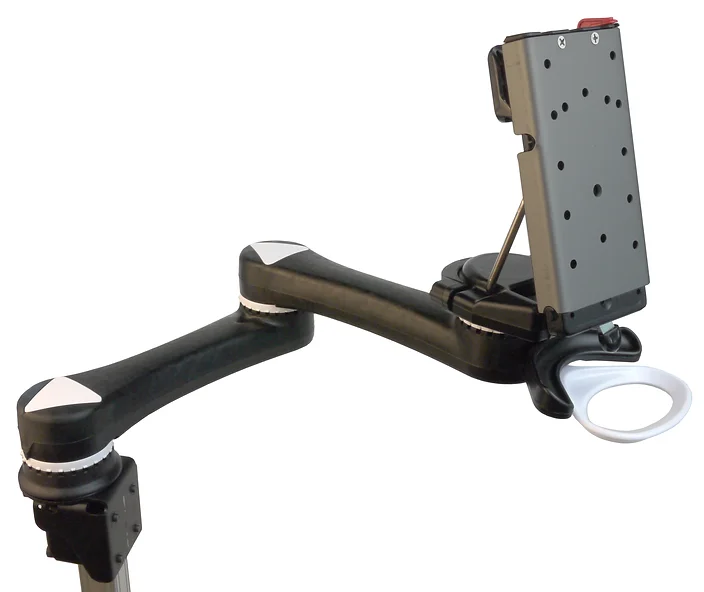

Dual Arm Mount'n Mover (AMJ)

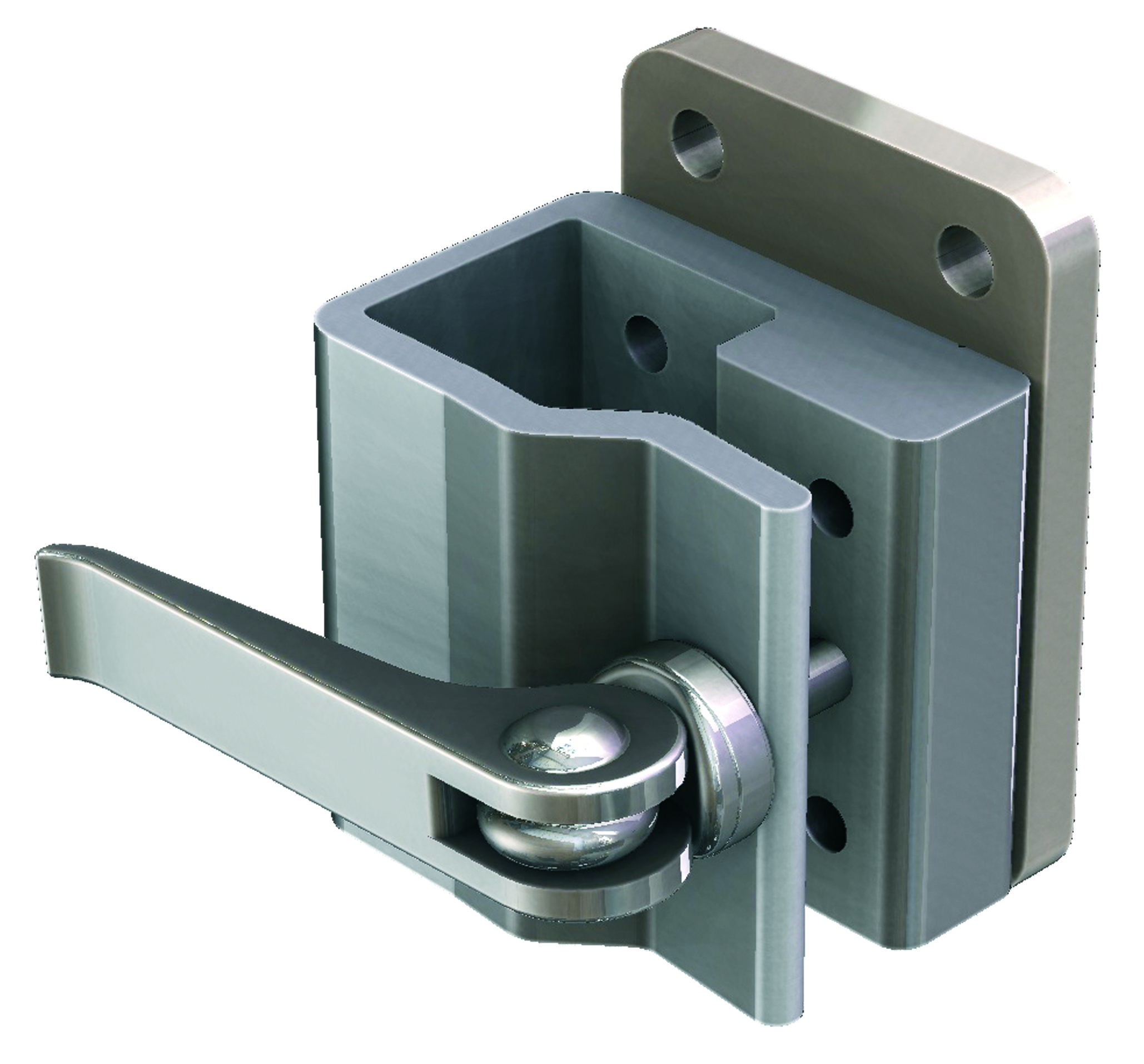

Wheelchair Bracket (WB2)
Installation
Step 1:
Attach the Wheelchair Bracket (WB2) to the seat rail with the included screws or Quantum T-nut.
Step 2:
Insert the post vertically into the Wheelchair Bracket (WB2) and secure it with the clamp.
Step 3:
Attach the Dual Arm to the top of the post and secure it with the Link Cube Lever.
Step 4:
Attach the A13J, using the Quick Release Plate, to the mount Tilt Plate.
