Installation of the Monty 3D Plus HD (RDM) should only be done by an Assistive Technology Professional (ATP). Technical support is available Monday - Friday, 7:00am - 3:00pm PST.  Call 425-242-3902 or email support@tolttechnologies.com.


The Rehadapt Monty 3D Plus HD (RDM) securely attaches an A13J to a powered wheelchair so that the eyegaze device can be used while the power-wheelchair is in motion. It provides a highly adjustable mounting solution while maintaining stability. The RDM includes a M3D Base Coupler which allows easy removal of the entire mount from the power-wheelchair.

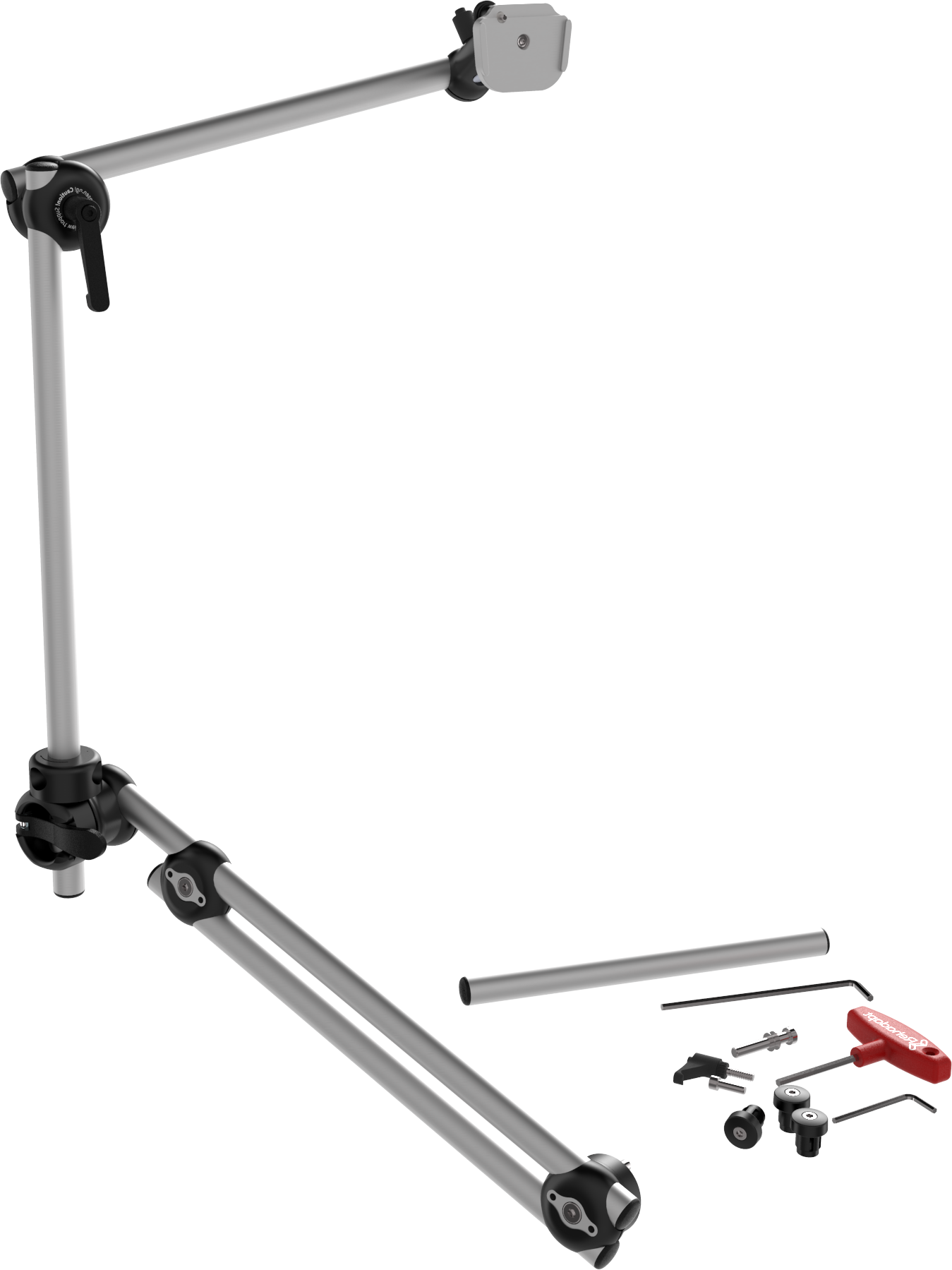

Monty 3D Plus HD (RDM)

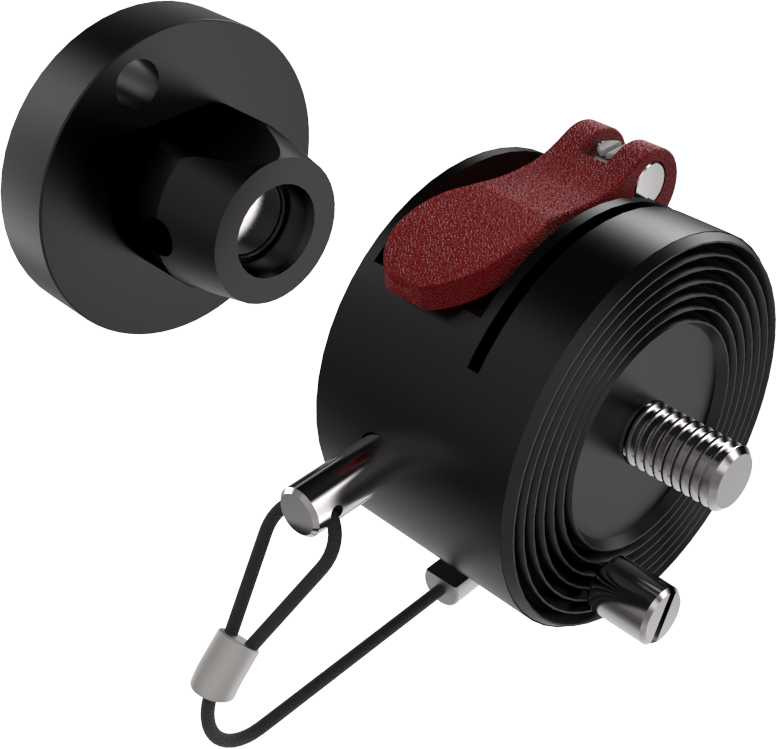

M3D Base Coupler


















Installation


Step 1:


Attach the Base Coupler to the Permobil Unitrack with the included screws or the Quantum T-nut.


Step 2:


Attach the base of the mount to the Base Coupler and secure it with the pin and lever.


Step 3:


Insert the upper mount tube into the swivel joint vertically.


Step 4:


Attach the A13J using the dove tail mounting plate.
