This article demonstrates how to perform an eye-tracker calibration with the Alea NXT eye-tracker and IntelliGaze.
Demonstration Video: How to Calibrate - Alea NXT
Step 1:
From the Windows Desktop, click on the Home button in the IntelliGaze Operation Bar.
Step 2:

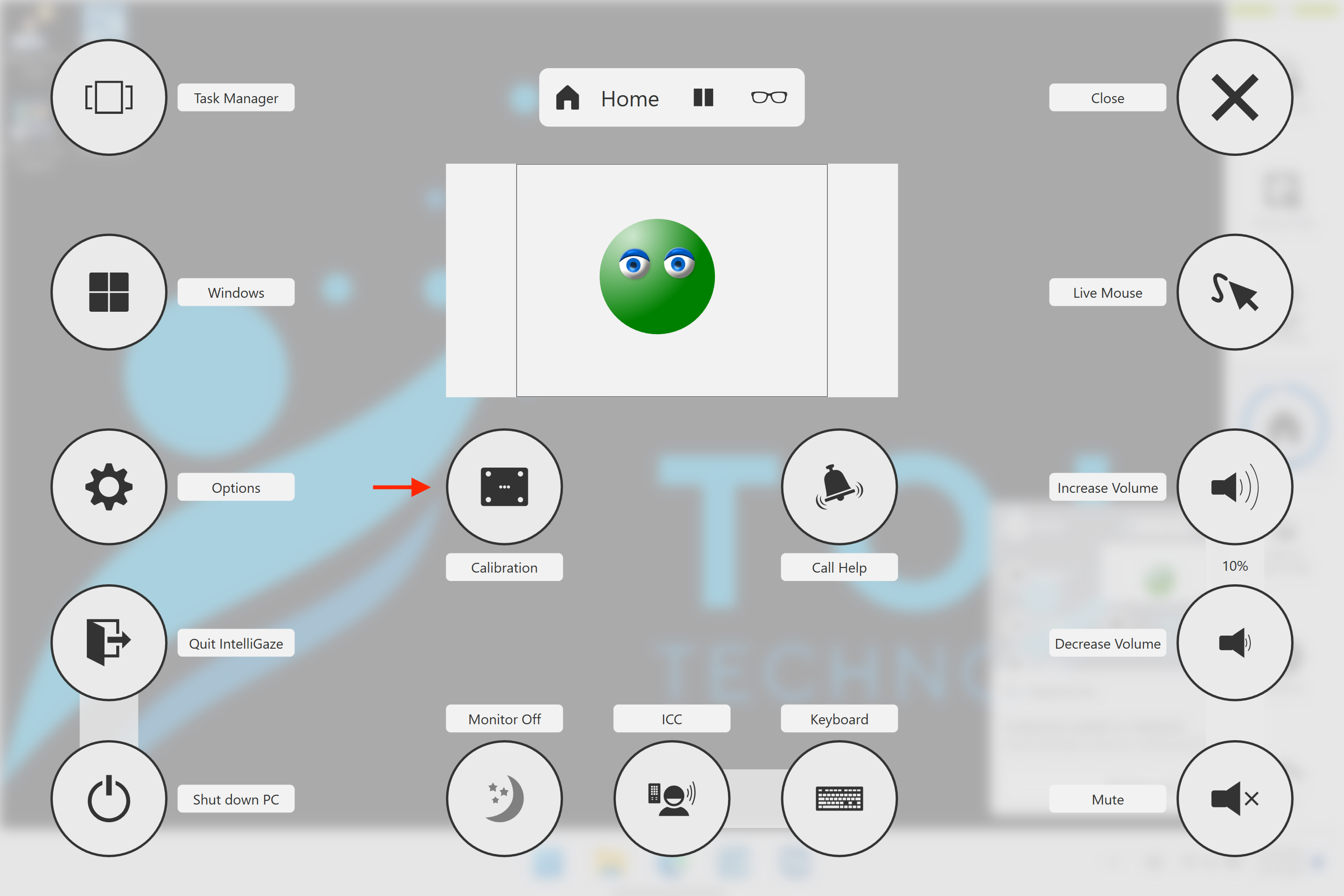

In the Home screen, ensure your face appears centered and green in the positioning guide. Next click Calibration.
Step 3:

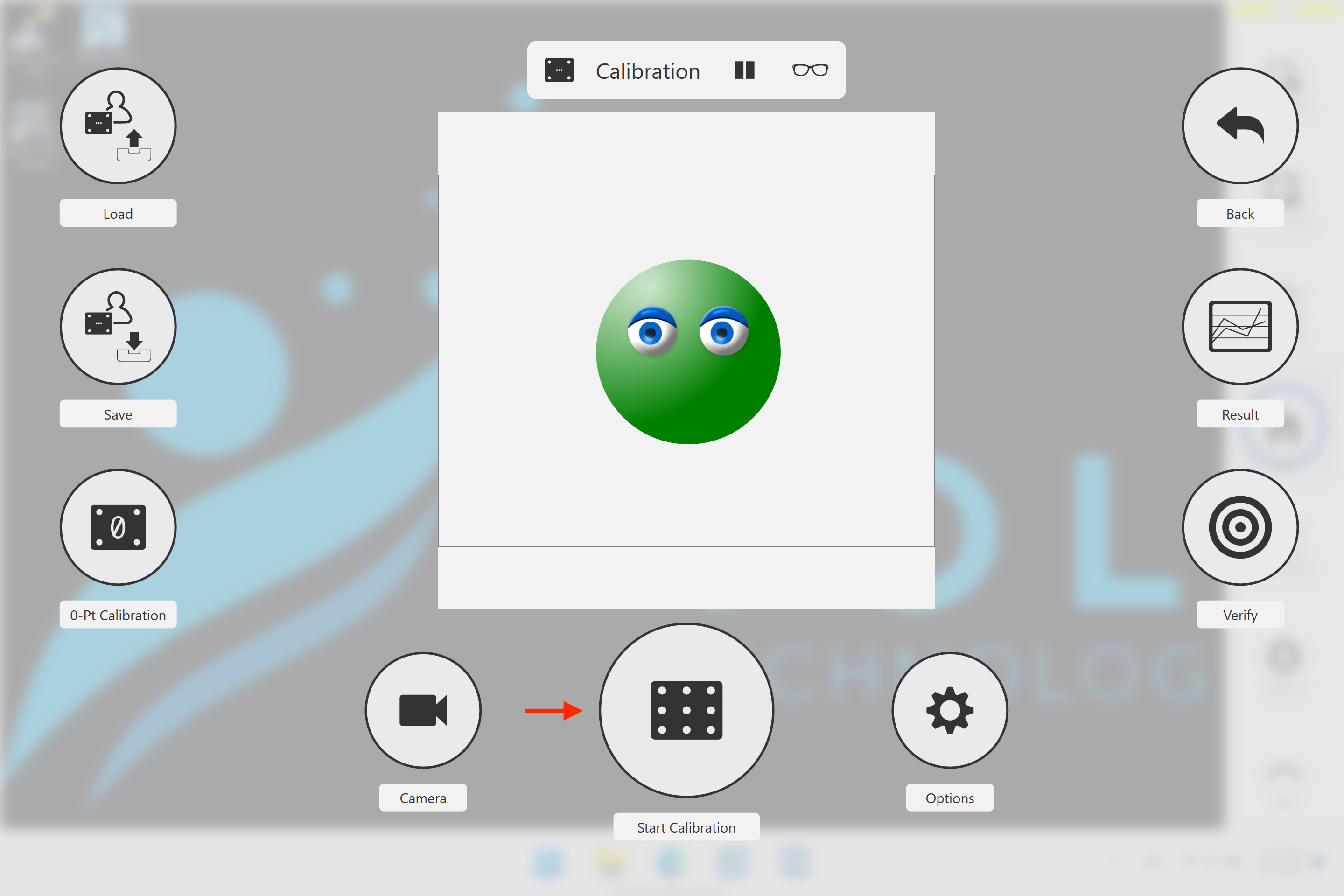

In the Calibration screen, click on Start Calibration, and follow the targets with your eyes as they move across the screen.
Step 4:

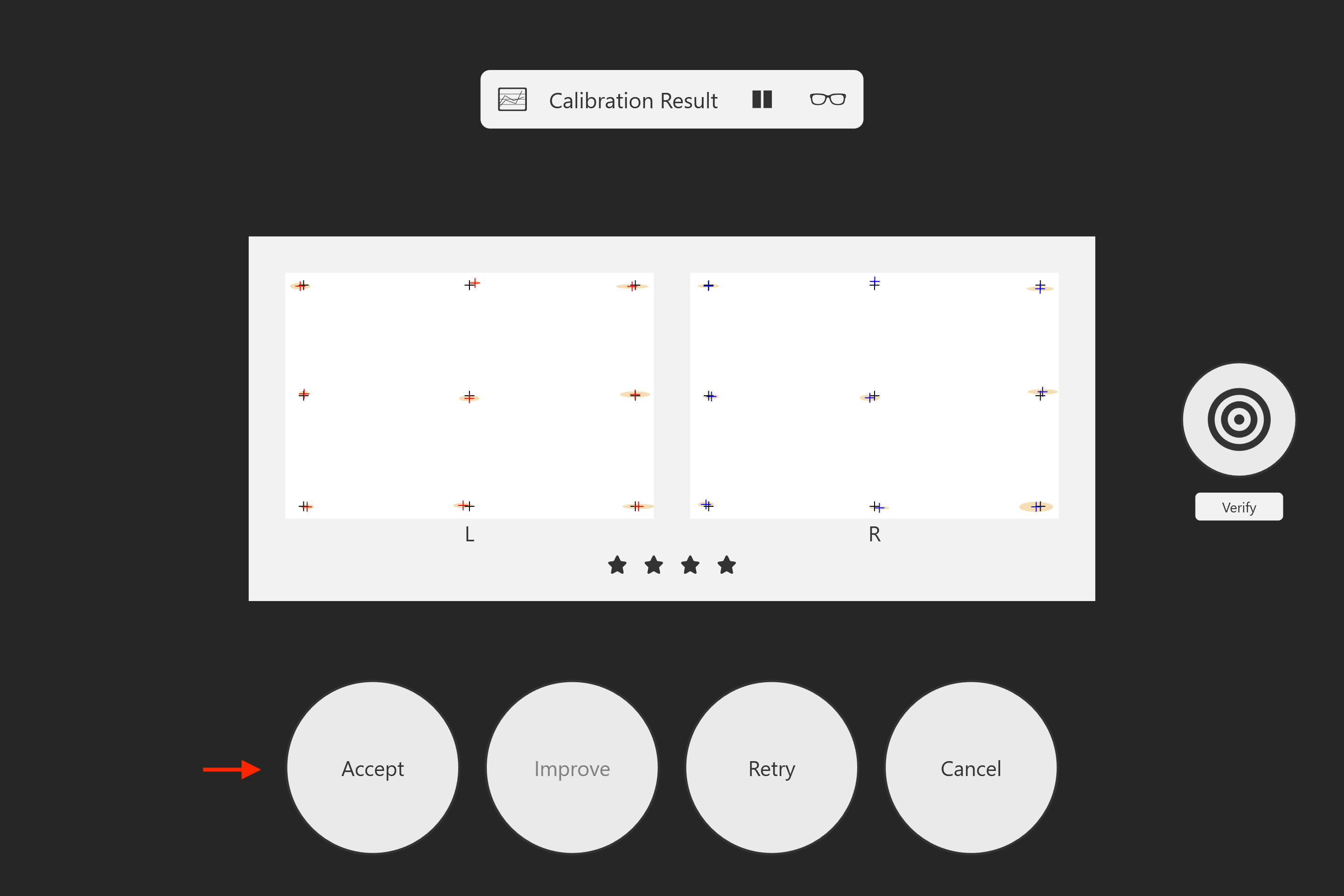

When the calibration is complete, the results will appear on screen, showing the quality of the calibration.
Step 5:
If you are satisfied with the calibration results, click Accept.
You have now completed the eye tracking calibration that will be used when running Ability Drive®.
Next Step: How to Start Ability Drive - Alea NXT
Technical support is available Monday - Friday, 7:00am - 3:00pm PST. Please call (425)242-3902 or email support@tolttechnologies.com.
