This guide explains how to program both driving and seating modes for Ability Drive®. The Mode Switch to access seat functions is enabled in the Ability Drive® app and can be toggled On or Off from the settings screen. When the Mode Switch is set to On, the mode button (crossing arrows) will appear on the drive screen. ATPs must ensure that the Enhanced Display is mounted up next to the eye gaze device screen and in clear view of the Ability Drive® user.


Technical support is available Monday - Friday, 7:00am - 3:00pm PST. Please call (425)242-3902 or email support@tolttechnologies.com.

A PDF of this guide can be found at the end of this article.

Quantum Programming Guide for Quantum ECON-i


Step 1: Connect to the power-wheelchair using the ECON-i programming app.

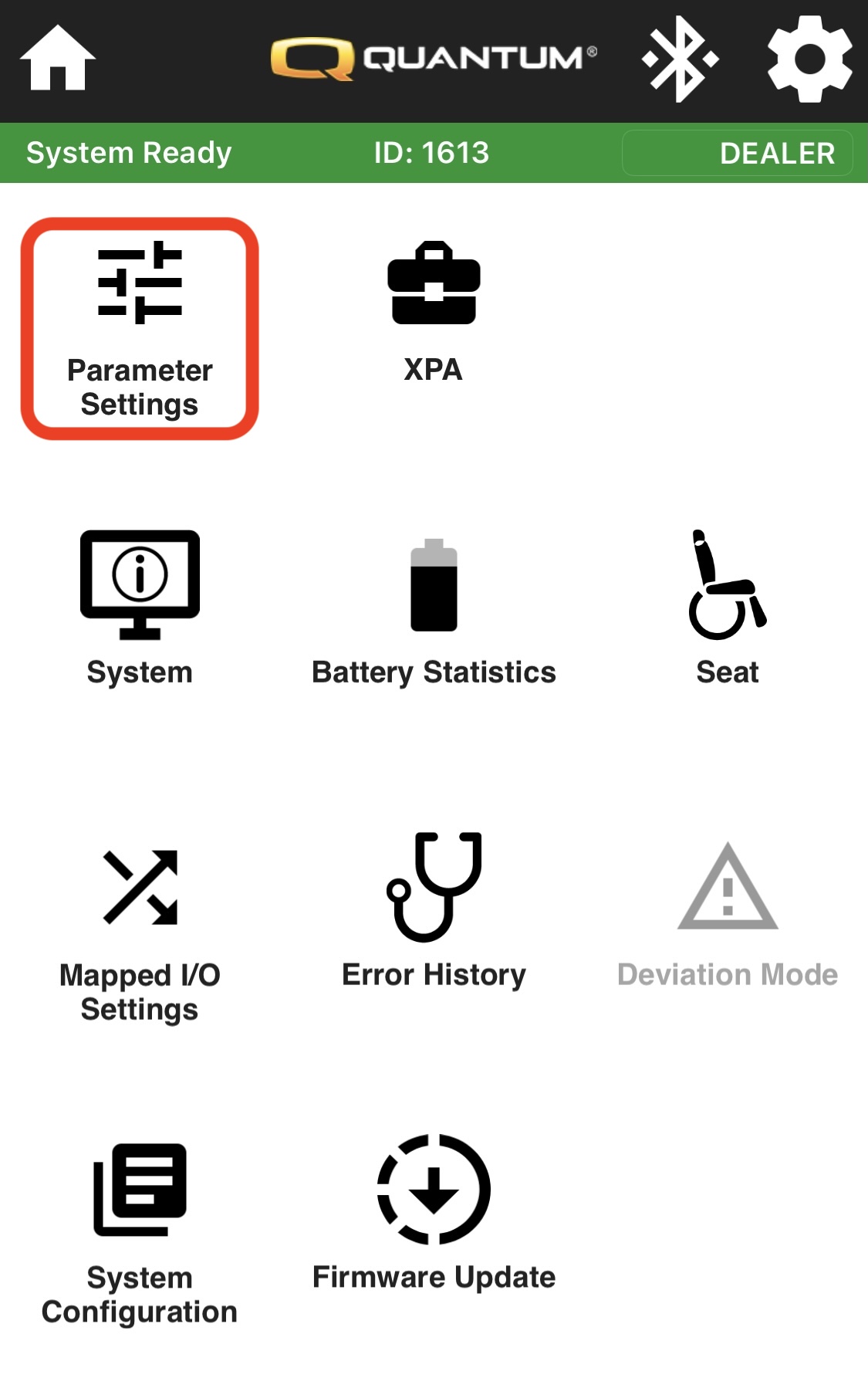

Step 2: Select Parameter Settings

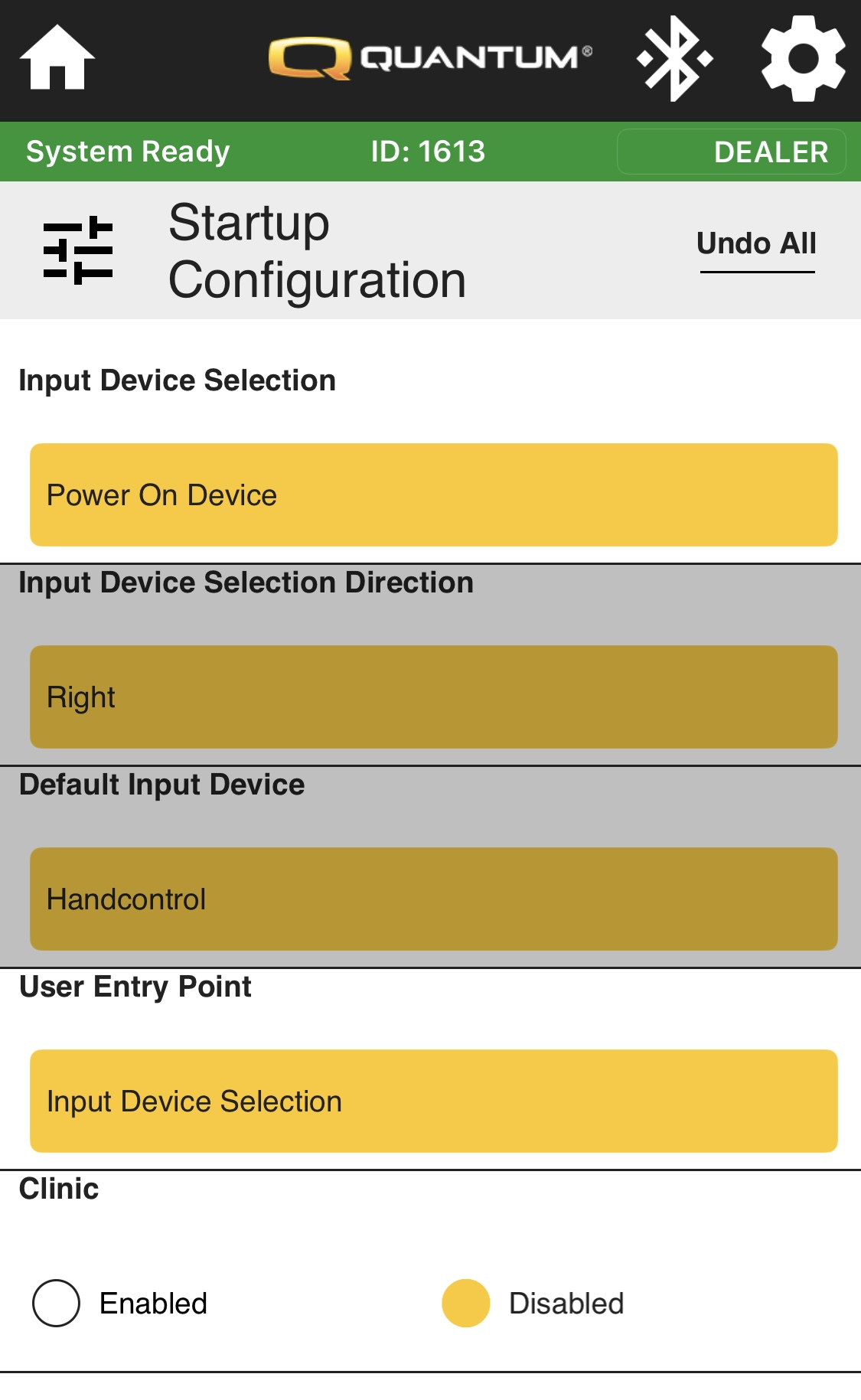

            Select Startup Configuration

                        Set Input Device Selection = Power on Device


Step 3: Select Enhanced Display:

            Select Profile Setup:

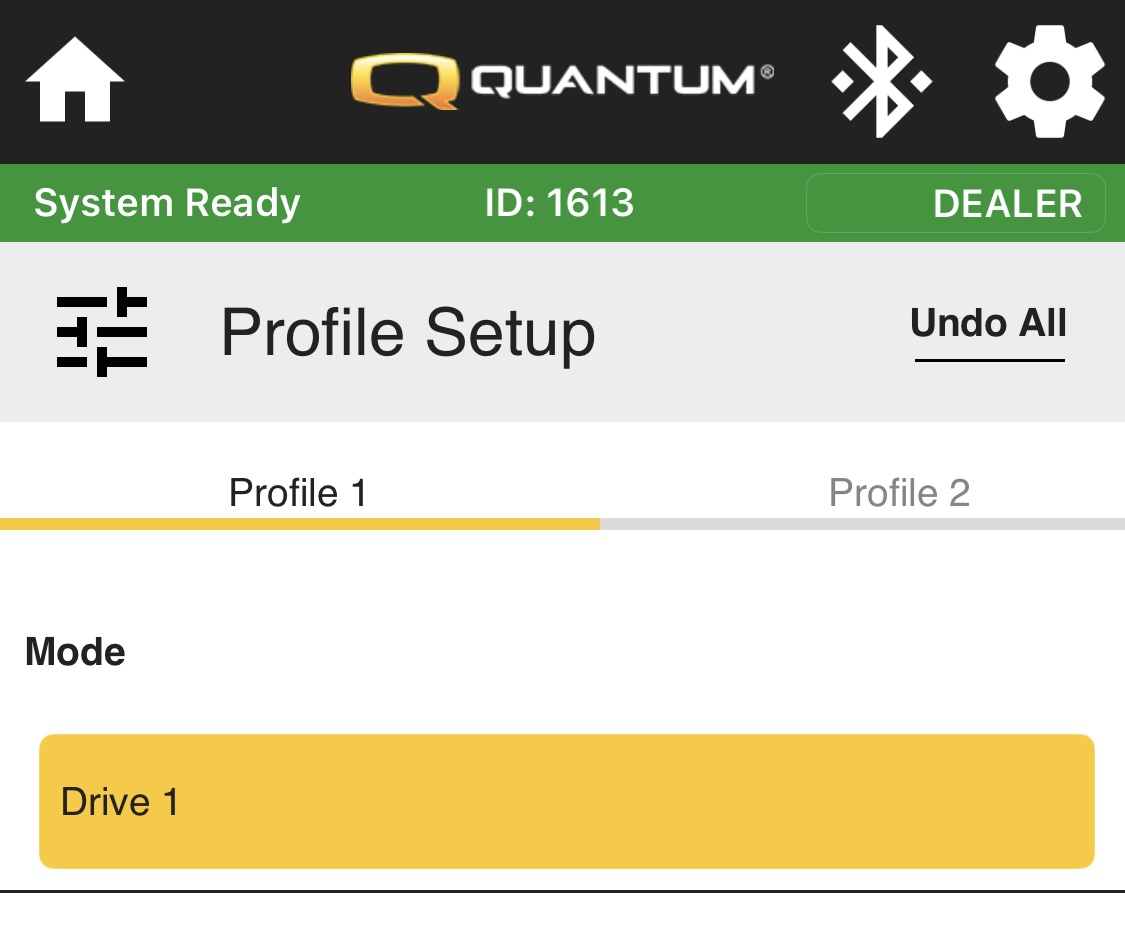

                        Set Profile 1 = Drive 1 (Slow Indoor Driving)

                        Set Profile 2 = Disabled (Optional Step: Drive 2 - Outdoor Moderate Driving)

                        Set Profile 3 - 5 = Disabled

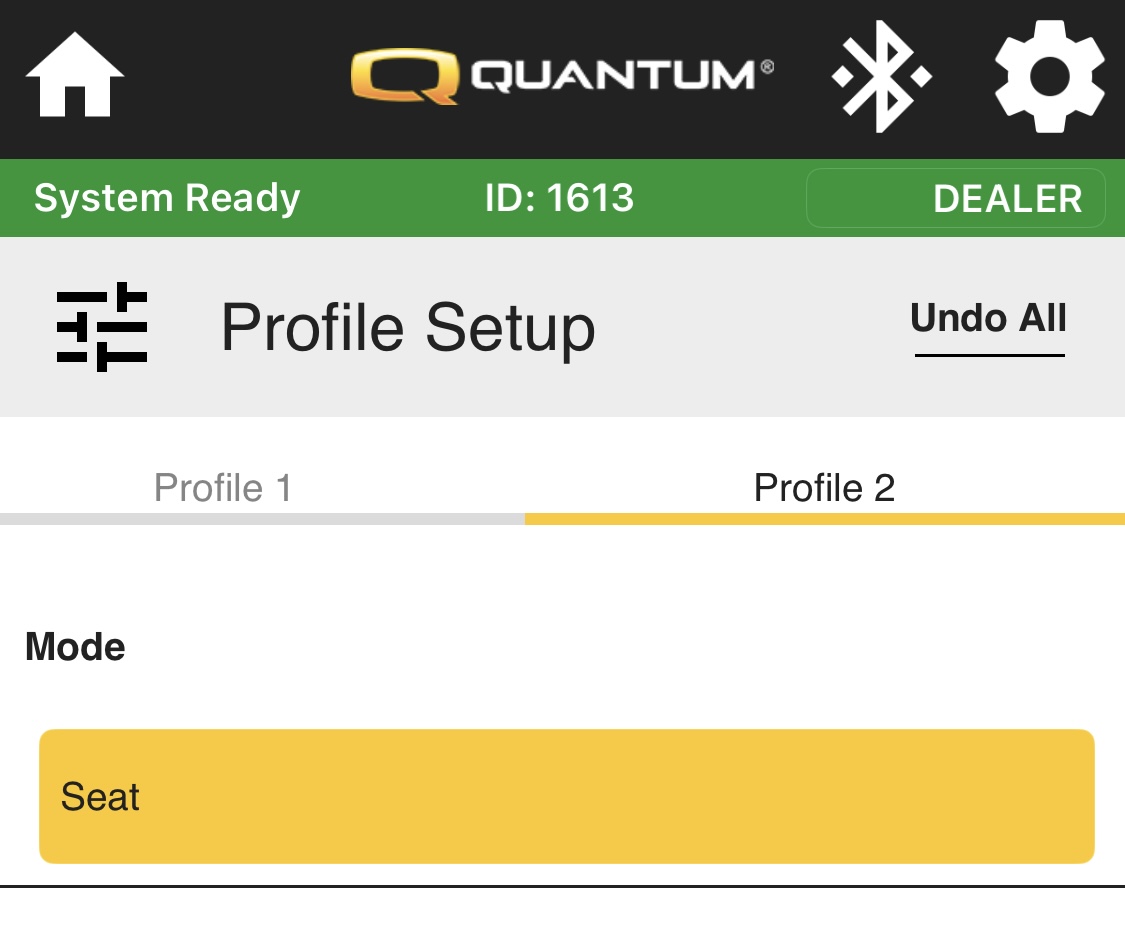

                        Set Profile 6 = Seat

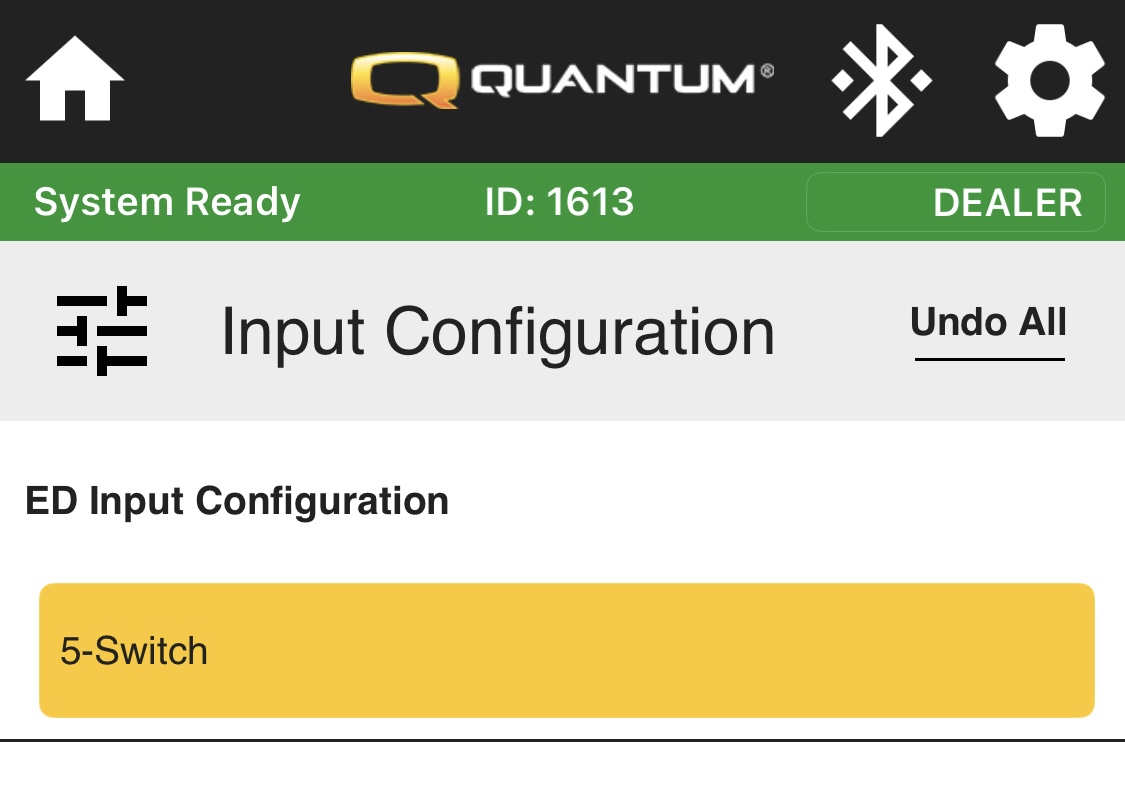

            Select Input Configuration:

                        Set ED Input Configuration = 5 Switch

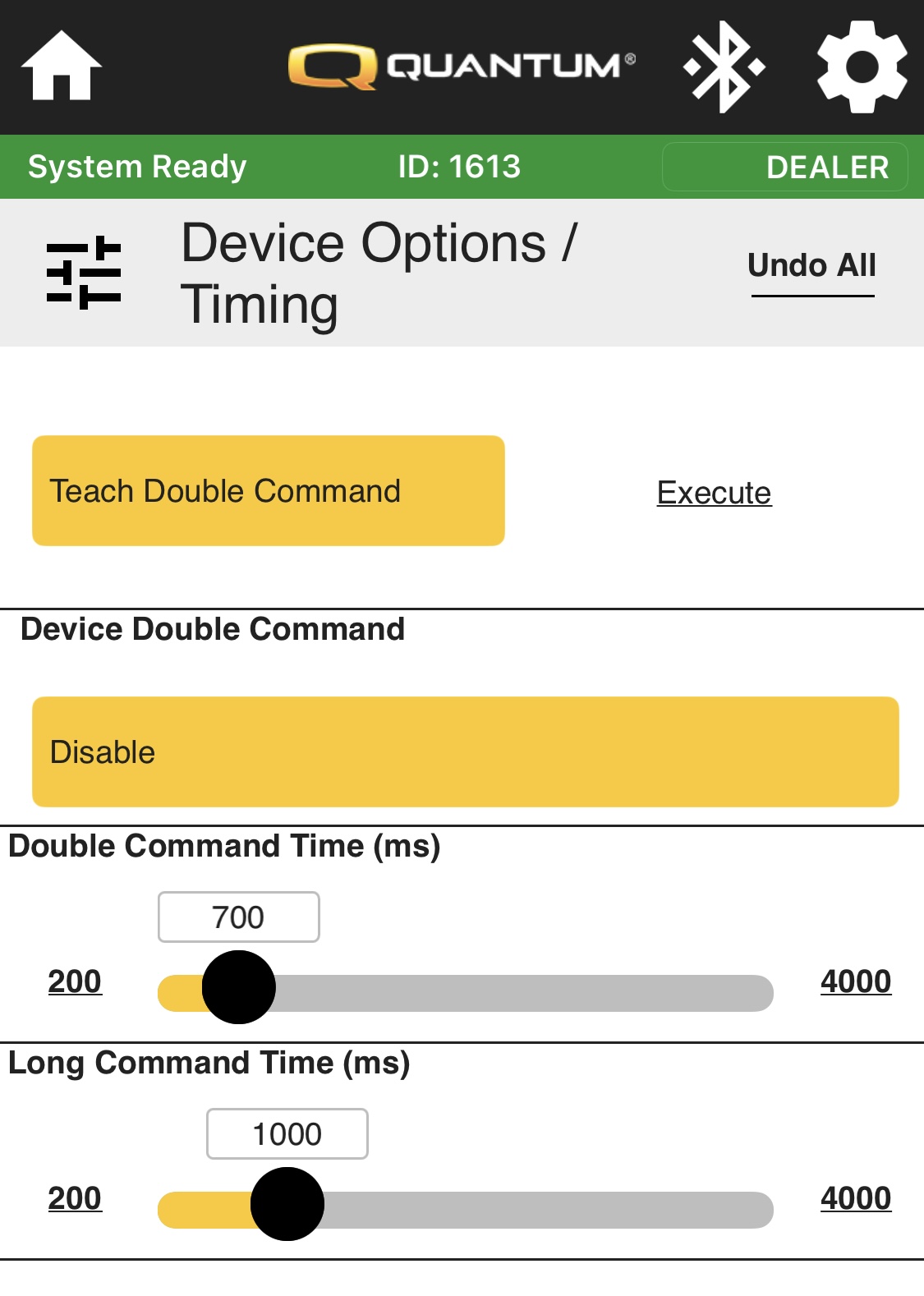

            Select Device Options / Timing:

                        Set Device Double Command = Disabled

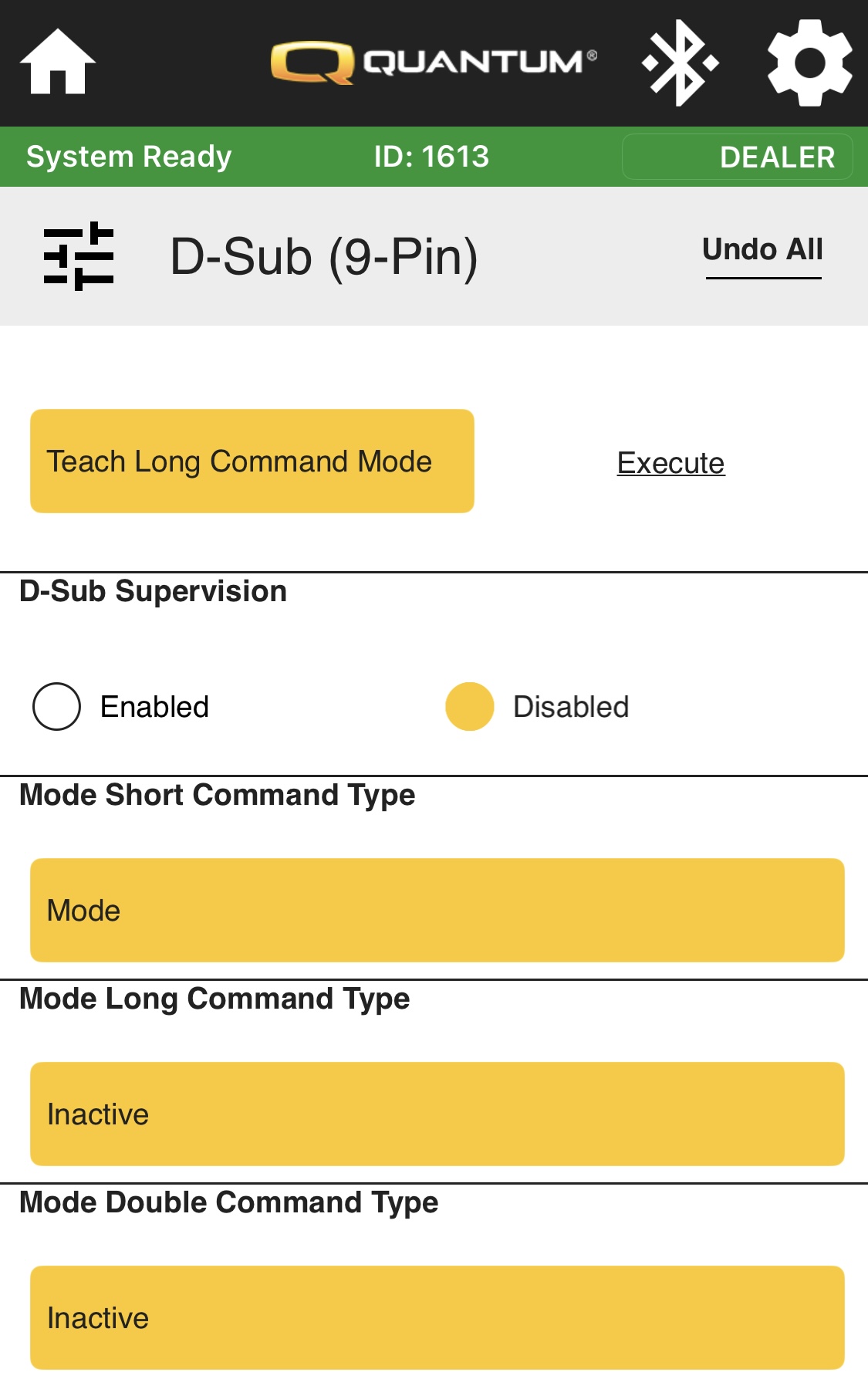

            Select D-Sub (9-Pin):

                        Set D-Sub Supervision = Disabled

                        Set Mode Short Command Type = Mode

                        Set Mode Long Command = Inactive

                        Set Mode Double Command = Inactive

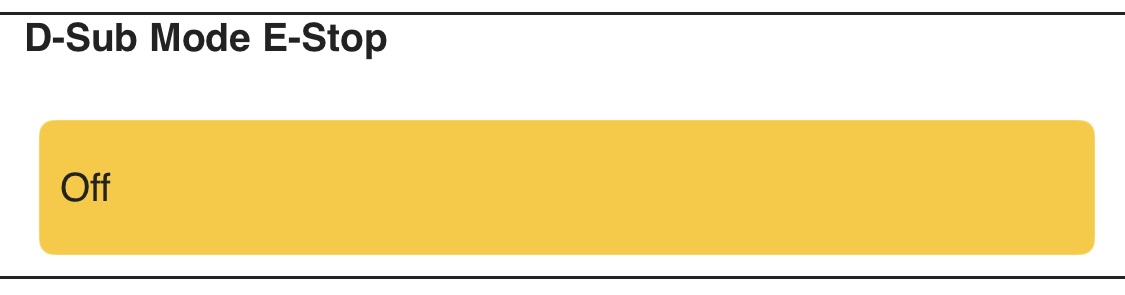

                        Set D-Sub Mode E-Stop = Off

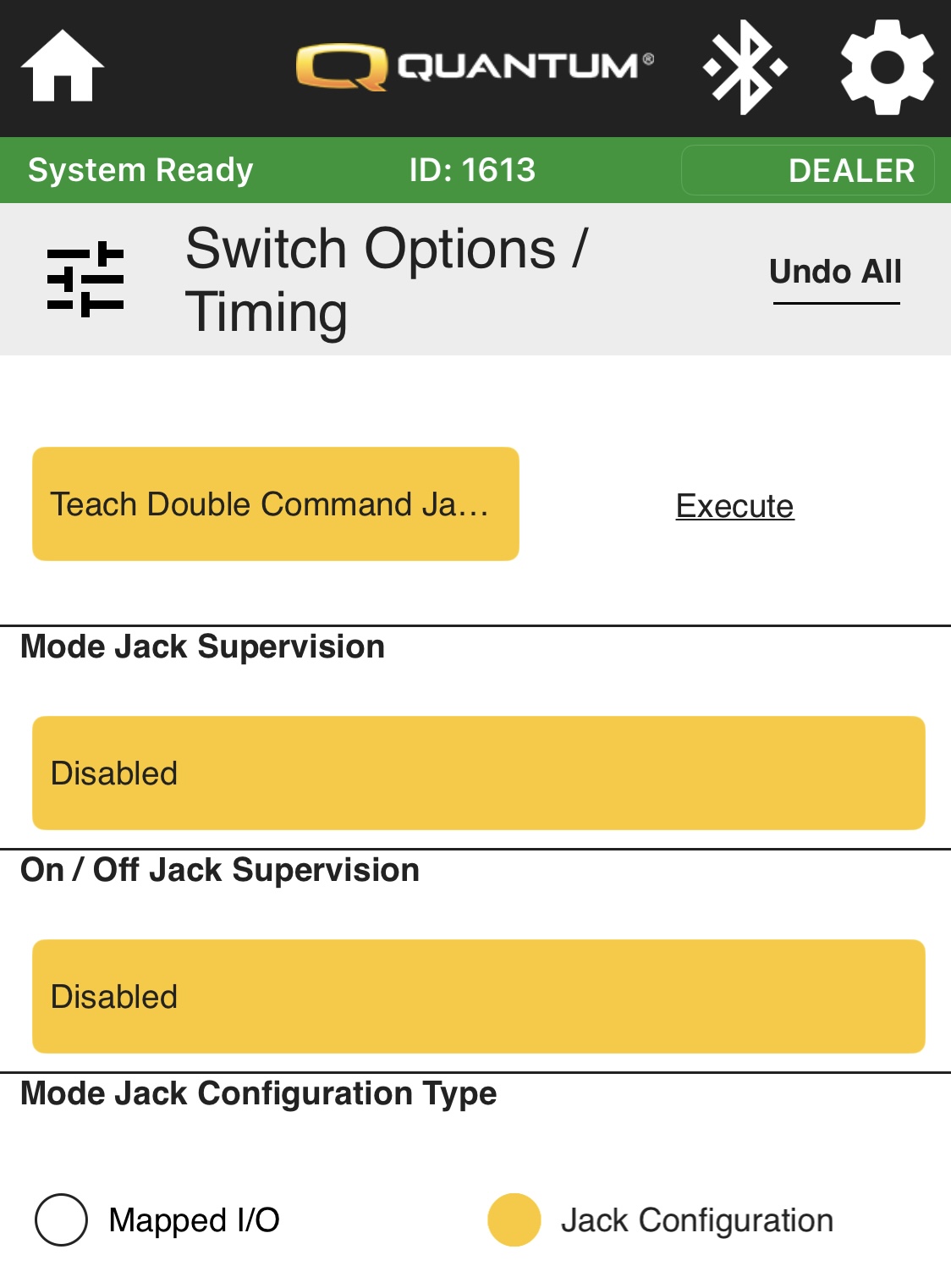

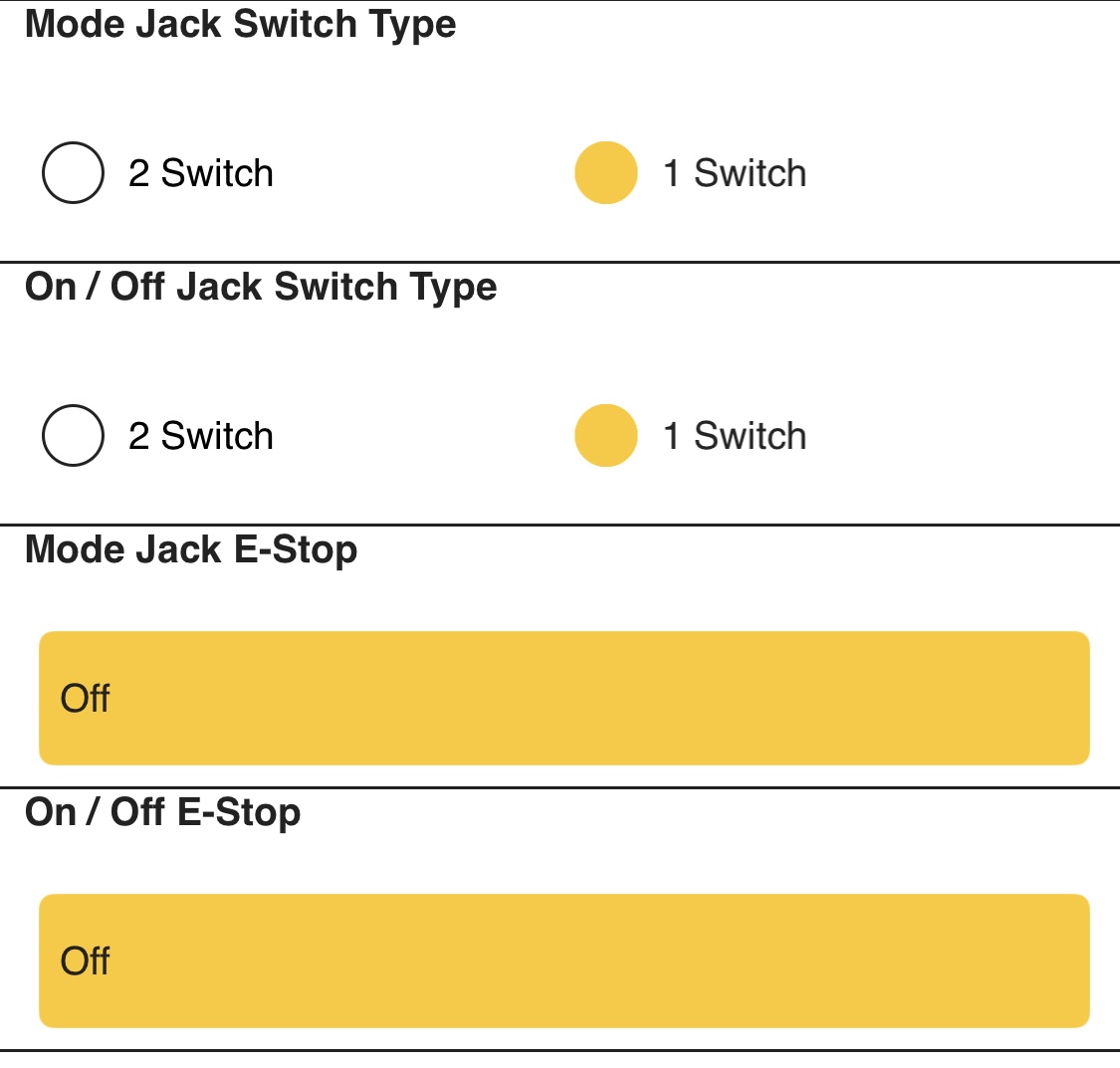

            Select Switch Options / Timing:

                        Set On / Off  Jack Switch Type = 1 Switch



                        (This setting is for the buddy button to power on and off the chair.)

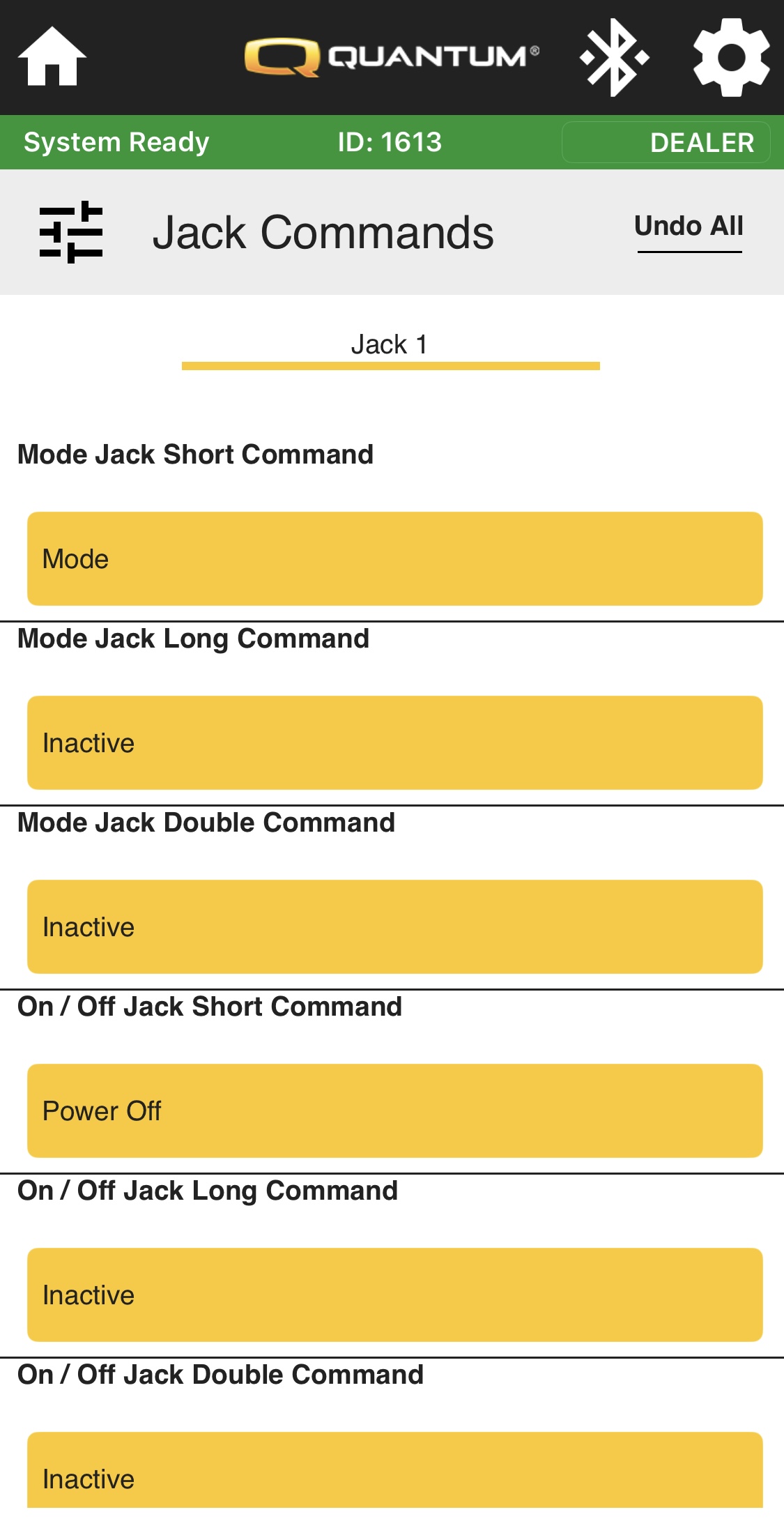

            Select Jack Commands:

                        Select Jack 1

                                    Set On / Off Jack Short Command = Power Off




            Select Menu Settings:

                        Set Menu Navigation Mode = Manual

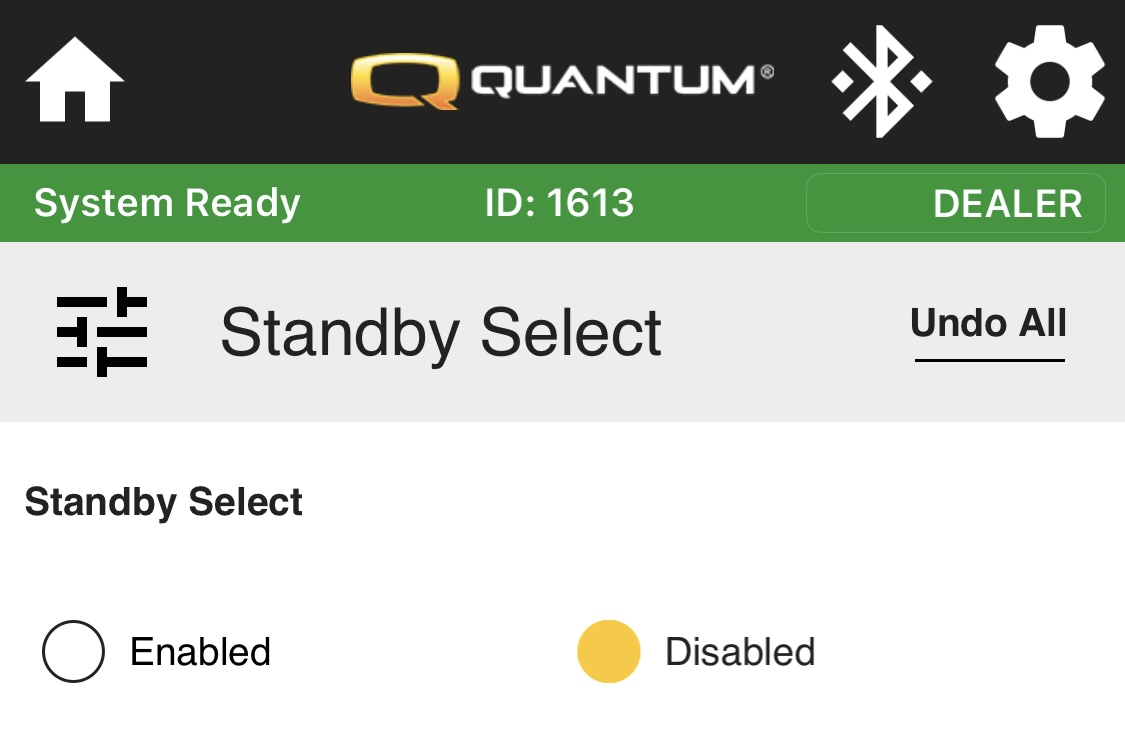

            Select Standby Select:

                        Set Standby Select = Disabled

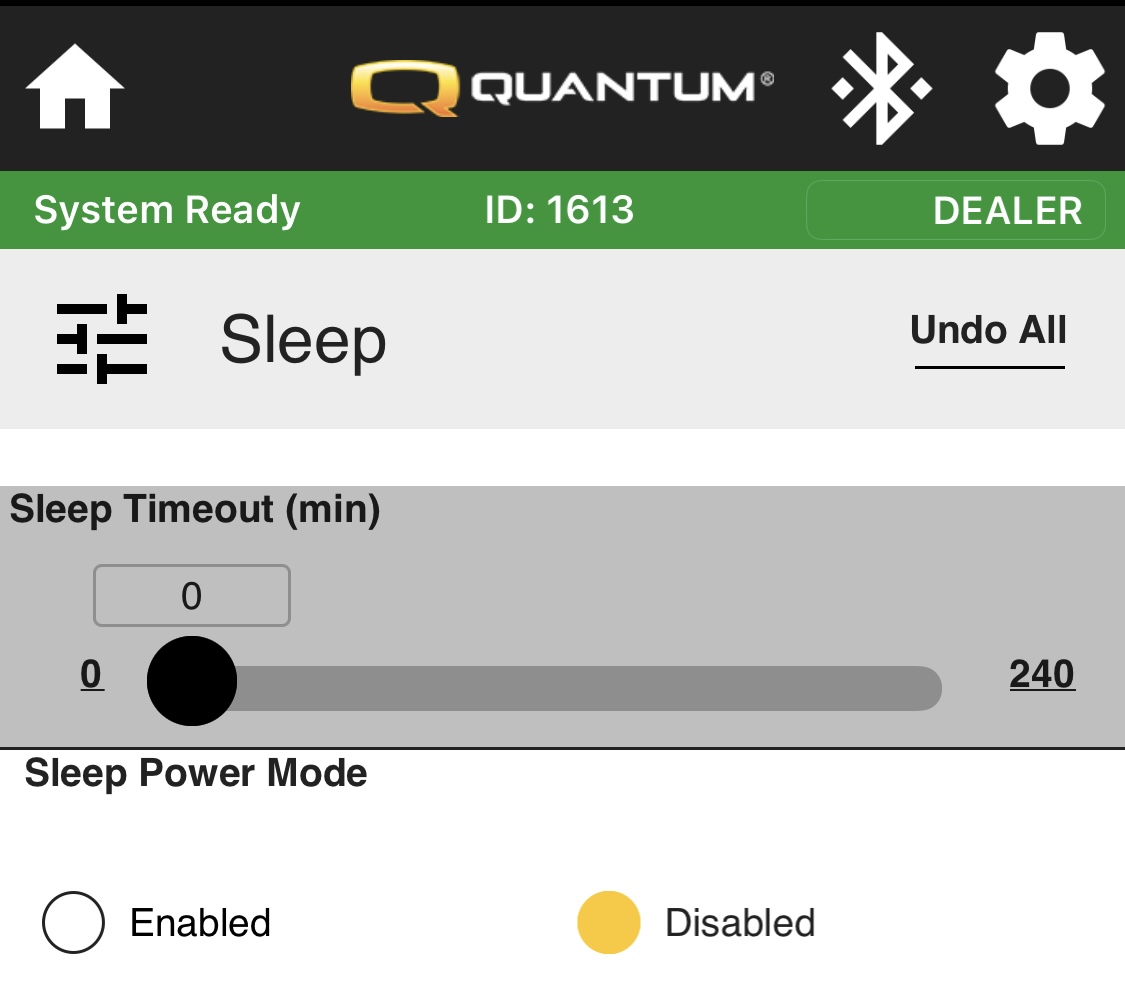

            Select Sleep:

                        Set Sleep Power Mode = Disabled

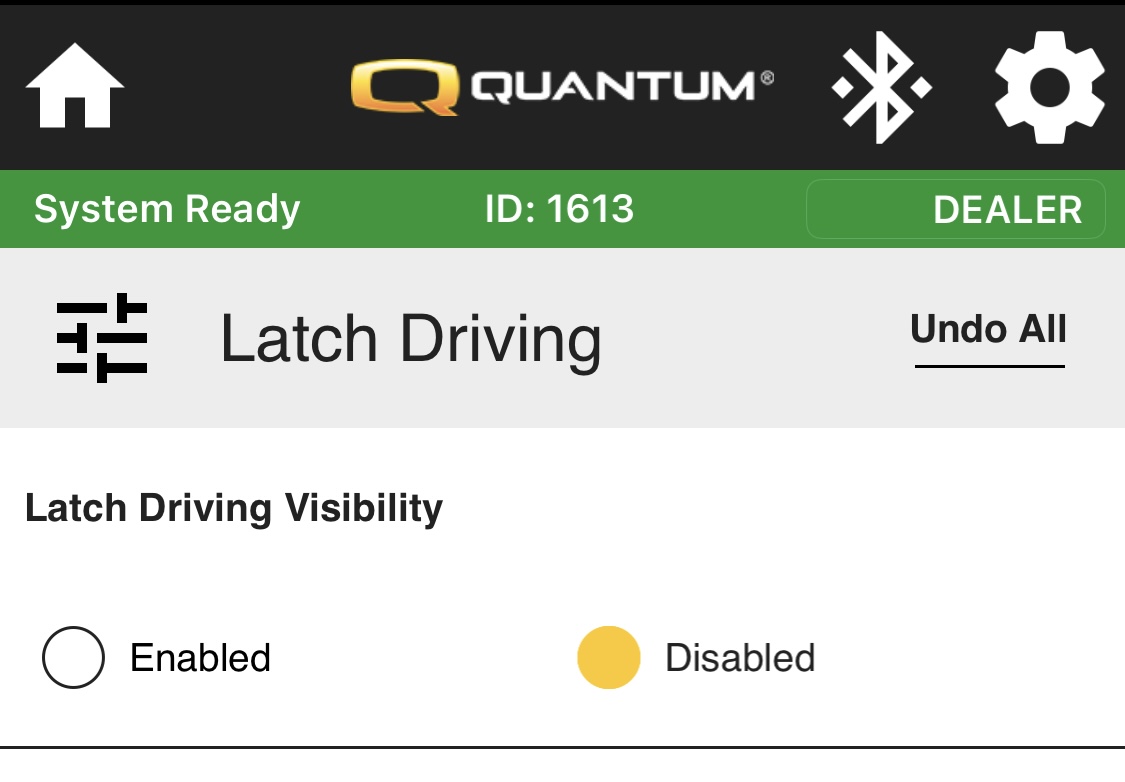

            Select Latch Driving:

                        Set Latch Driving Visibility = Disabled

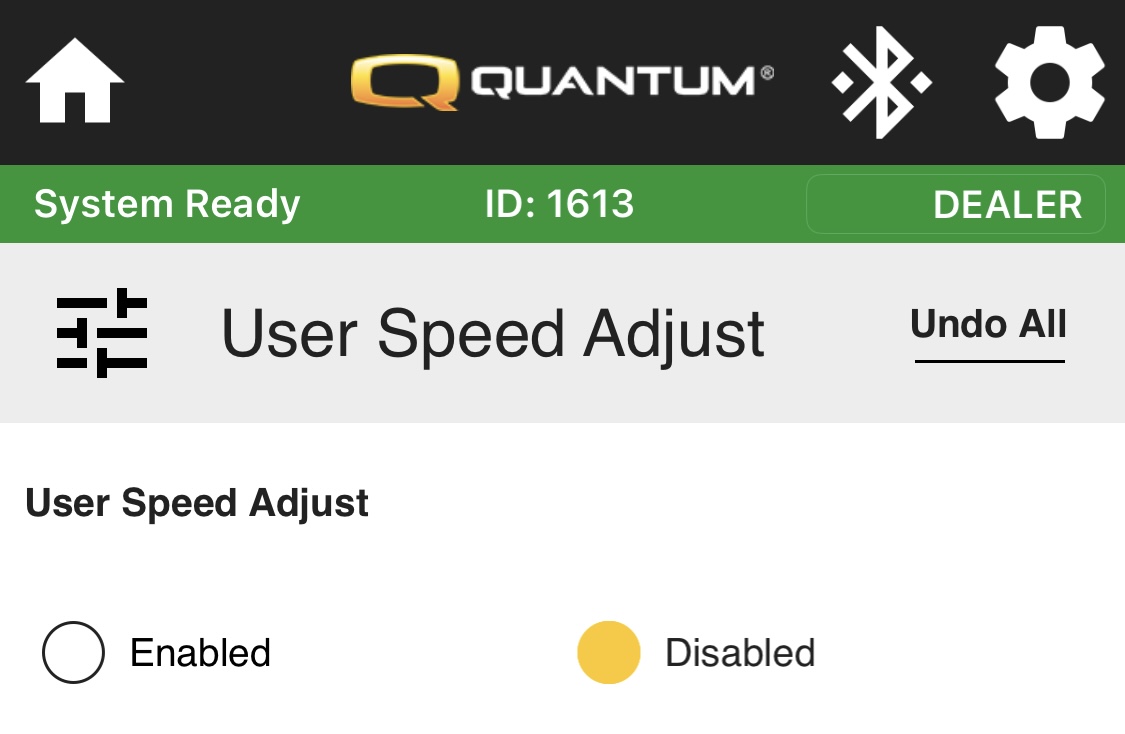

            Select User Speed Adjust:

                        Set User Speed Adjust = Disabled

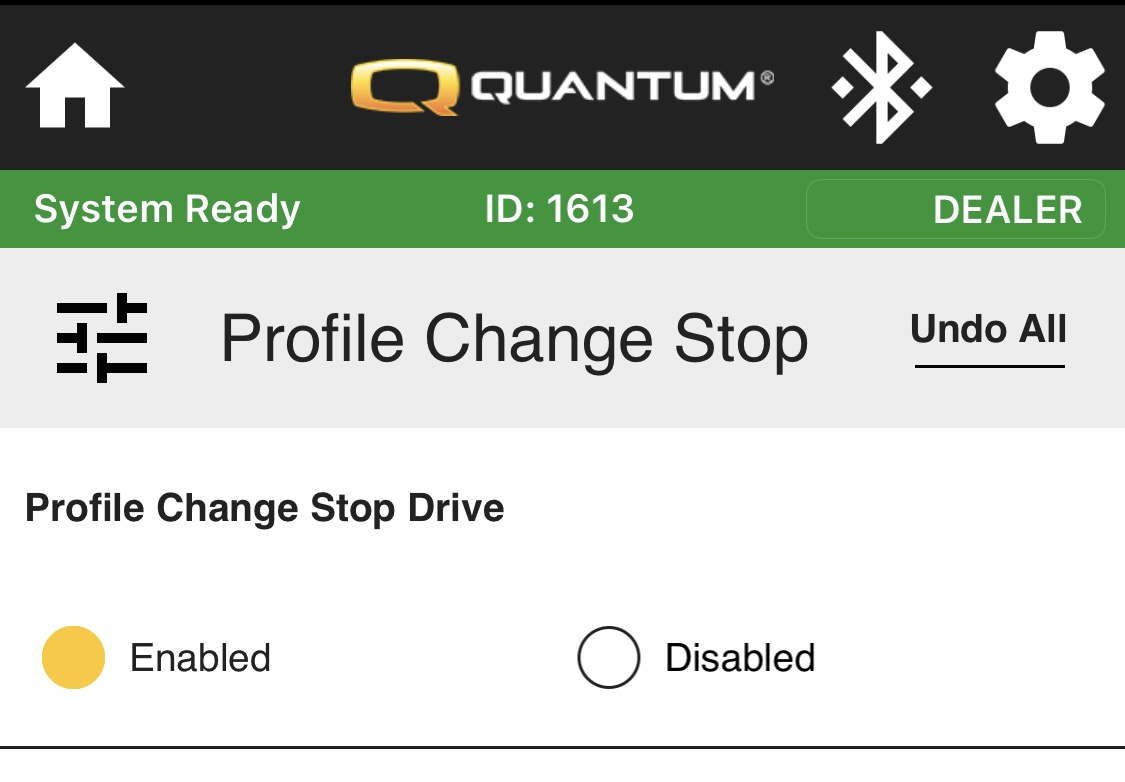

            Select Profile Change Stop:

                        Set Profile Stop Drive = Enabled



                        (This setting is important to ensure that the chair comes to a stop before accessing seating.)


Step 4: Select Seat from the Program Adjustments Menu

            Select Seat Settings:

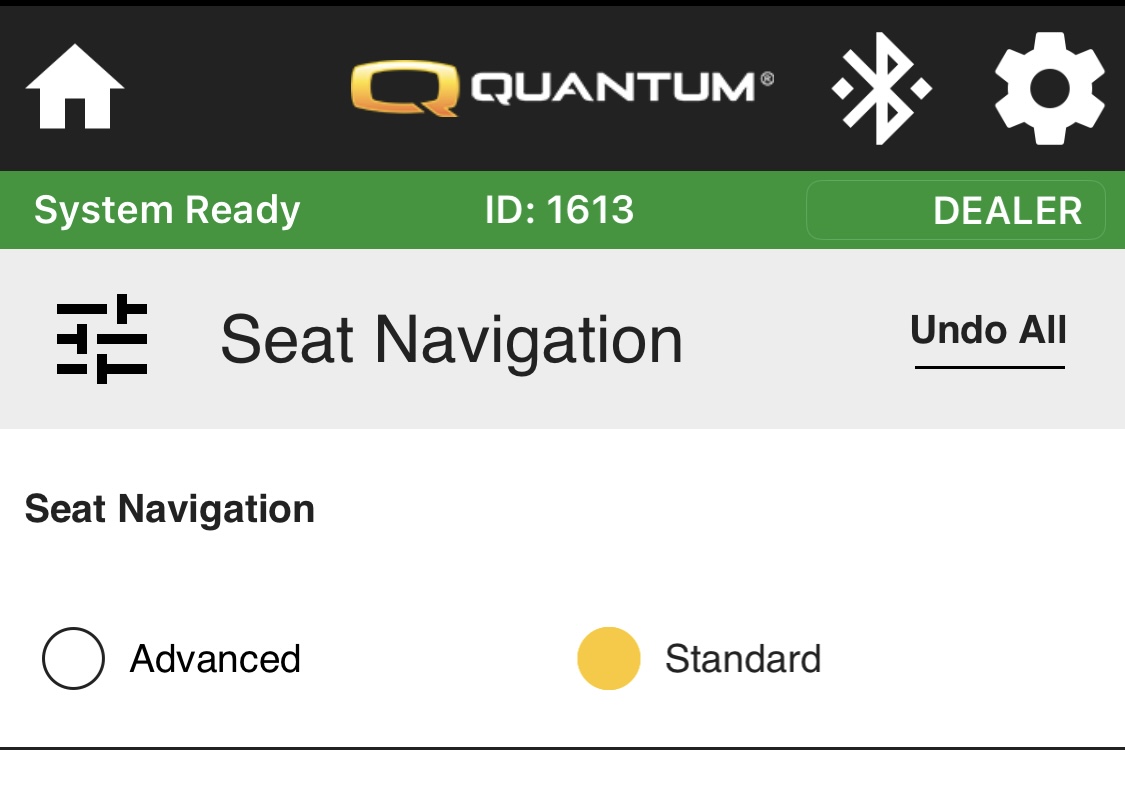

                        Set Seat Navigation = Standard

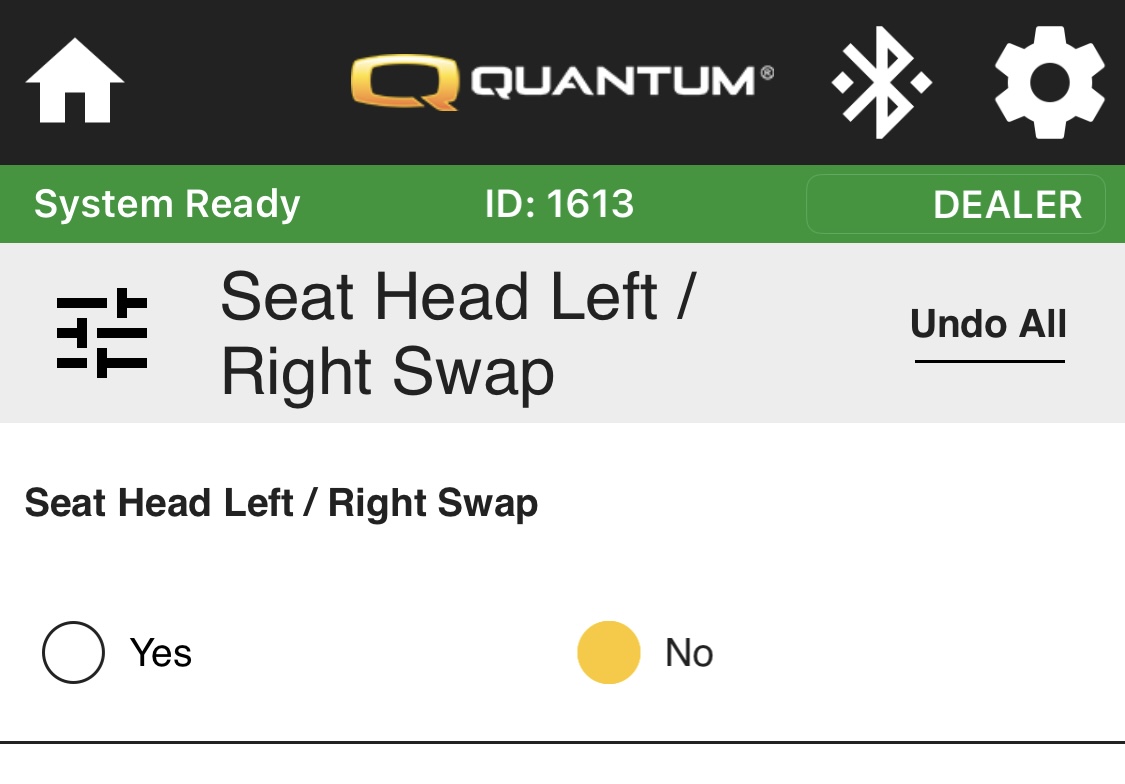

                        Set Seat Head Left / Right Swap = No

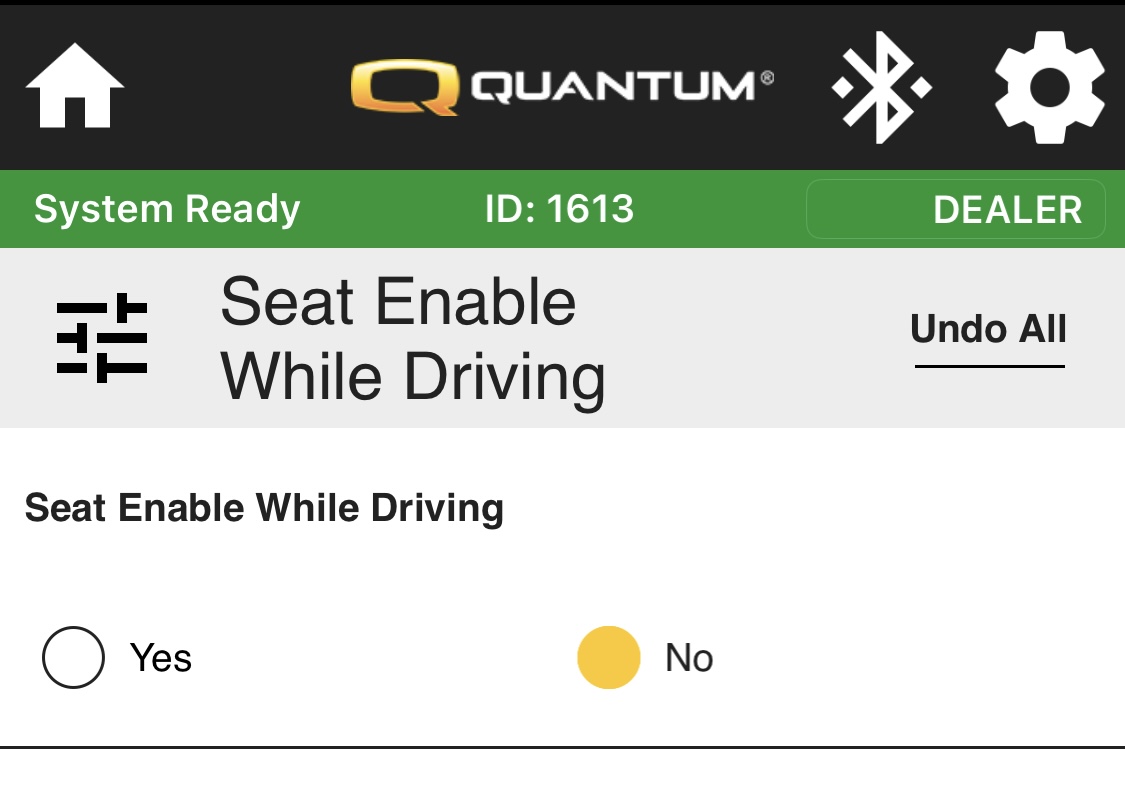

                        Set Seat Enabled While Driving = No


Step 5: Power cycle the chair using the Enhanced Display:

            Select Profile 1 Drive 1 (Slow Indoor Driving)

When safe to do so, open the Ability Drive app on the eye-gaze device to drive the chair.

Ensure the chair speeds, seating, and modes are set appropriately and tested for the client's environment.
